Seismic survey vessel underway on open ocean

Our 3D Seismic Vessel

MV Suyouhao

A medium-sized 3D seismic vessel configured to support offshore seismic acquisition and marine exploration operations.

Vessel overview

MV SUYOUHAO is owned by Inspiration Energy Limited and represents the company's core specialised asset. The vessel is configured for marine seismic acquisition support, with a 28-airgun array, nine airgun controls and two onboard compressors delivering a working pressure of 2,000 PSI / 138 bar.

At 476 GT and 46.8 m in length, the vessel is sized for shallow to medium water marine exploration work, with an endurance of 1,000 miles and twin Cummins KTA19-M main engines producing a total of 1,000 HP.

Inspiration Energy Limited provides the vessel, marine operations and offshore support scope. Seismic acquisition technology and data workflows are handled in conjunction with technical seismic partners.

Airgun System

28 ×
Bolt 1900LLX Airguns
9 ×
Airgun Controls
2,960 in³
Total Airgun Volume
2,000 PSI
138 bar Working Pressure
2 – 6 m
Airgun Operating Depth

Technical Specification

Verified vessel specification

Dimensions

Length
46.8 m
Moulded breadth
8.8 m
Moulded depth
3.7 m
Draft
2.1 m
Gross tonnage
476 GT

Propulsion

Main engines
2 × Cummins KTA19-M
Total propulsion power
1,000 HP

Seismic System

Airgun controls
9
Compressors
2 × LMF 21S/138-207-D
Working pressure
2,000 PSI / 138 bar

Airgun System

Airguns
28 × Bolt 1900LLX
Total airgun volume
2,960 in³
Airgun operating depth
2 – 6 m
Airgun manufacture date
9 September 2011

Performance

Speed
≈ 10 miles/hour (as per supplied specification)
Endurance
1,000 miles
MV SUYOUHAO technical specification as supplied
CategoryParameterValue
DimensionsLength46.8 m
Moulded breadth8.8 m
Moulded depth3.7 m
Draft2.1 m
Gross tonnage476 GT
PropulsionMain engines2 × Cummins KTA19-M
Total propulsion power1,000 HP
Seismic SystemAirgun controls9
Compressors2 × LMF 21S/138-207-D
Working pressure2,000 PSI / 138 bar
Airgun SystemAirguns28 × Bolt 1900LLX
Total airgun volume2,960 in³
Airgun operating depth2 – 6 m
Airgun manufacture date9 September 2011
PerformanceSpeed≈ 10 miles/hour (as per supplied specification)
Endurance1,000 miles

Propulsion

1,000 HP

2 × Cummins KTA19-M main engines

Vessel Dimensions

46.8 m
Length
8.8 m
Moulded Breadth
3.7 m
Moulded Depth
2.1 m
Draft

Vessel Gallery

Photographs of MV Suyouhao

Photographs of MV SUYOUHAO in dry dock, her engine room and seismic acquisition operations at sea.

Source Research 3D seismic vessel — airgun shooting operation.

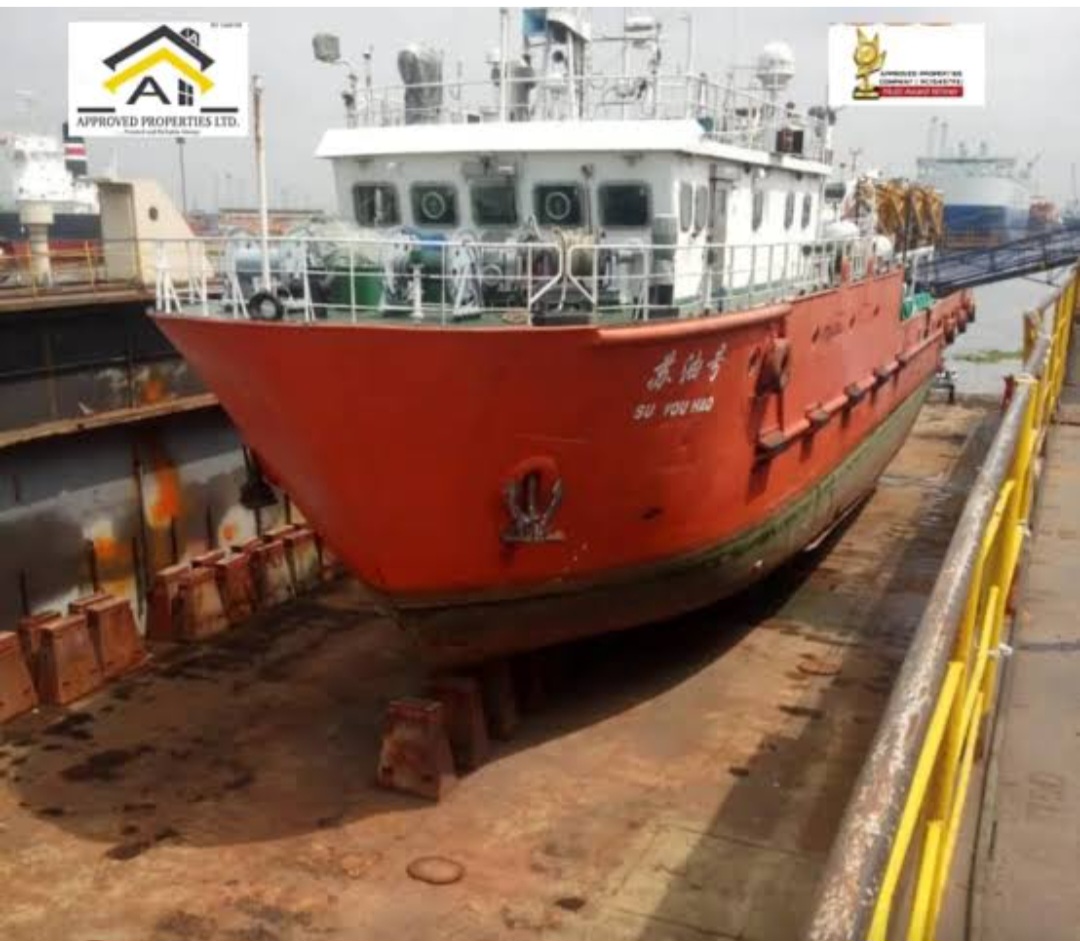

MV SUYOUHAO (SU YOU HAO) in dry dock showing red hull and forward deck
MV SUYOUHAO in dry dock — hull and forward deck inspection.

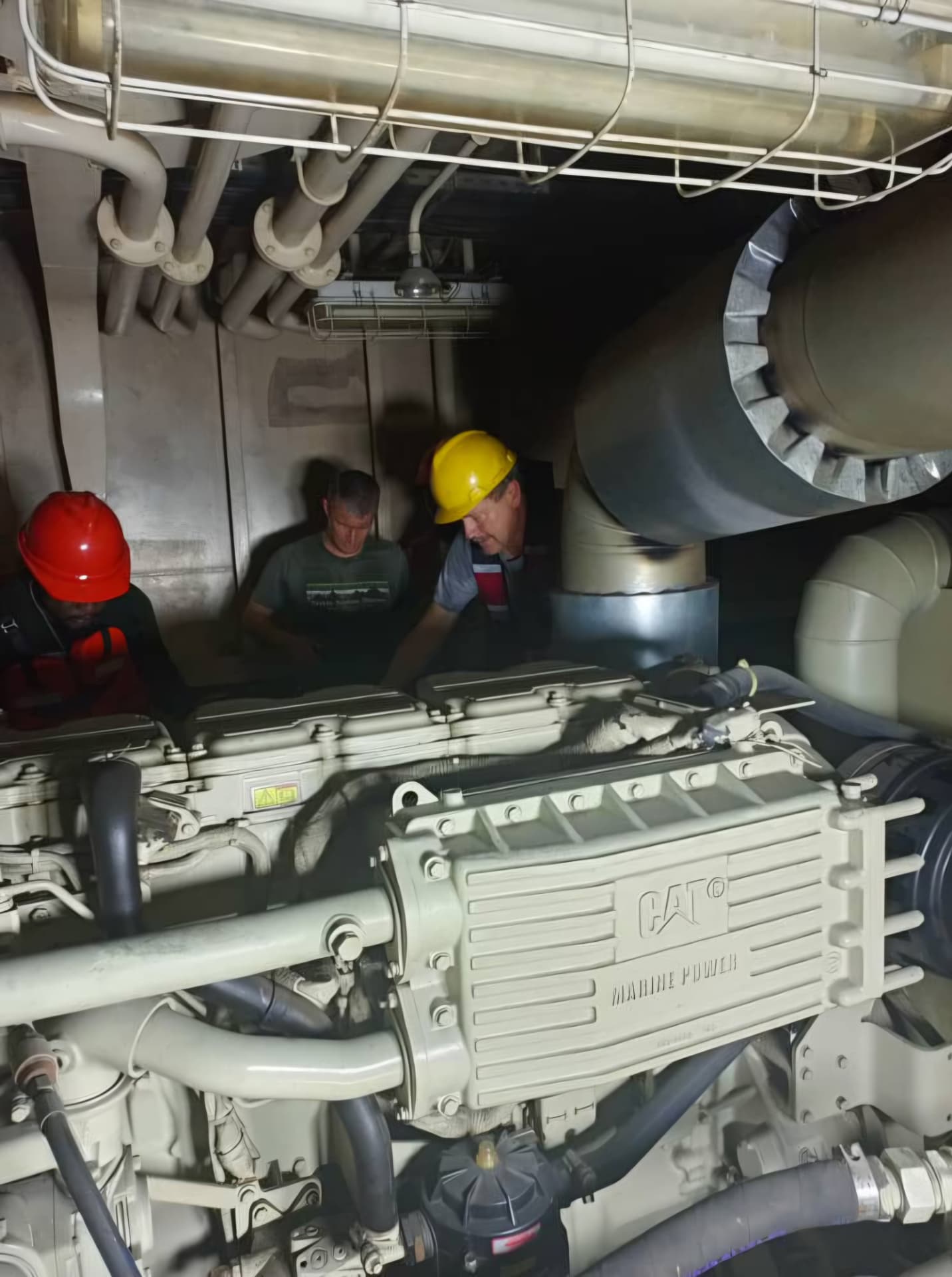

Engineers inspecting the CAT marine main engine in the MV SUYOUHAO engine room
Engine room — marine main engine inspection with crew and technicians.

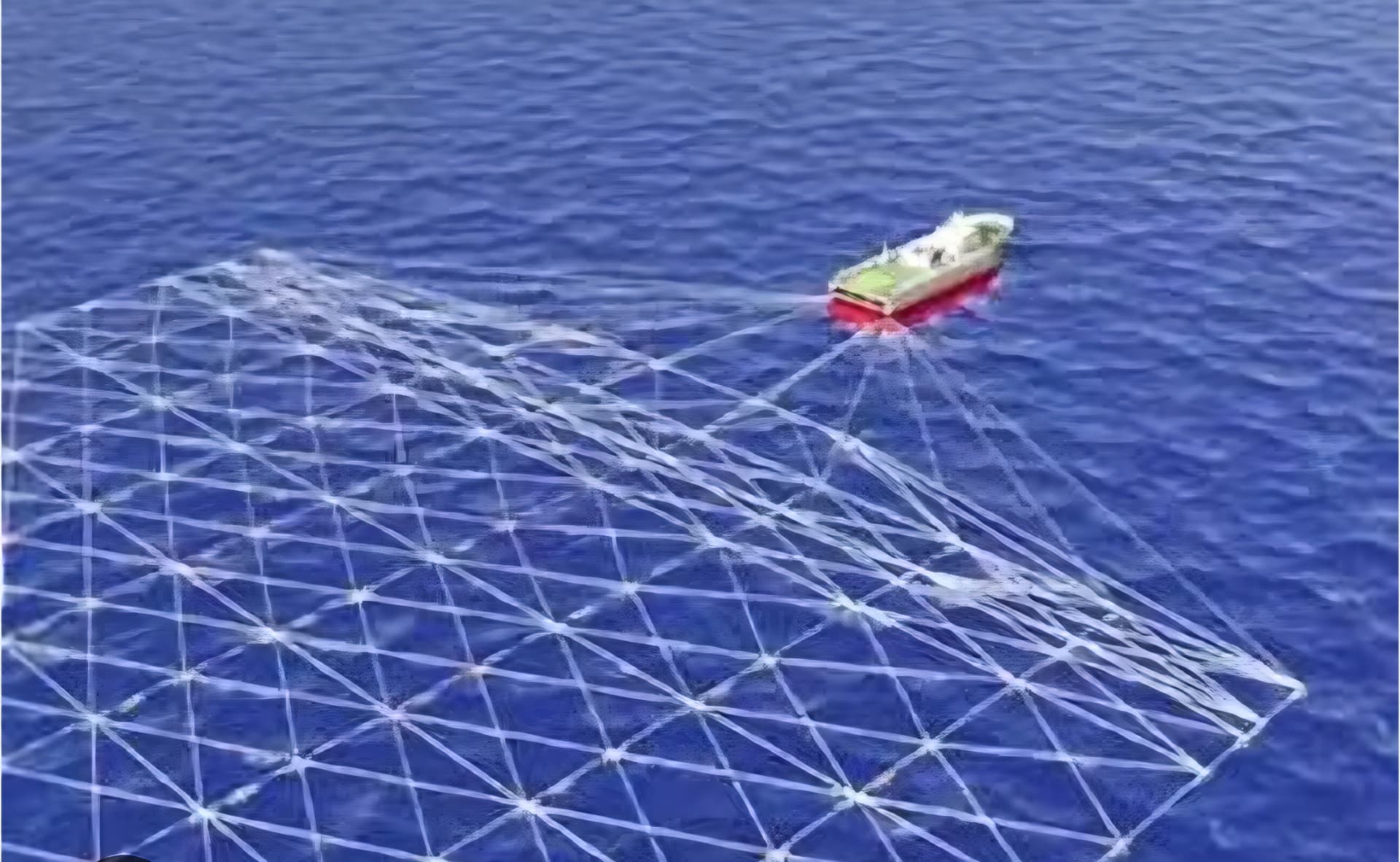

Aerial illustration of MV SUYOUHAO towing a 3D seismic streamer spread at sea
3D seismic streamer spread configuration during acquisition.
Illustrative marine seismic airgun array equipment on a vessel deck
Illustrative marine seismic airgun equipment — not MV SUYOUHAO.
